How to set recommended fan curves (MSI)
How to enter the BIOS and set fan curves
- Restart your computer and repeatedly press the Delete key as it boots to enter the BIOS.

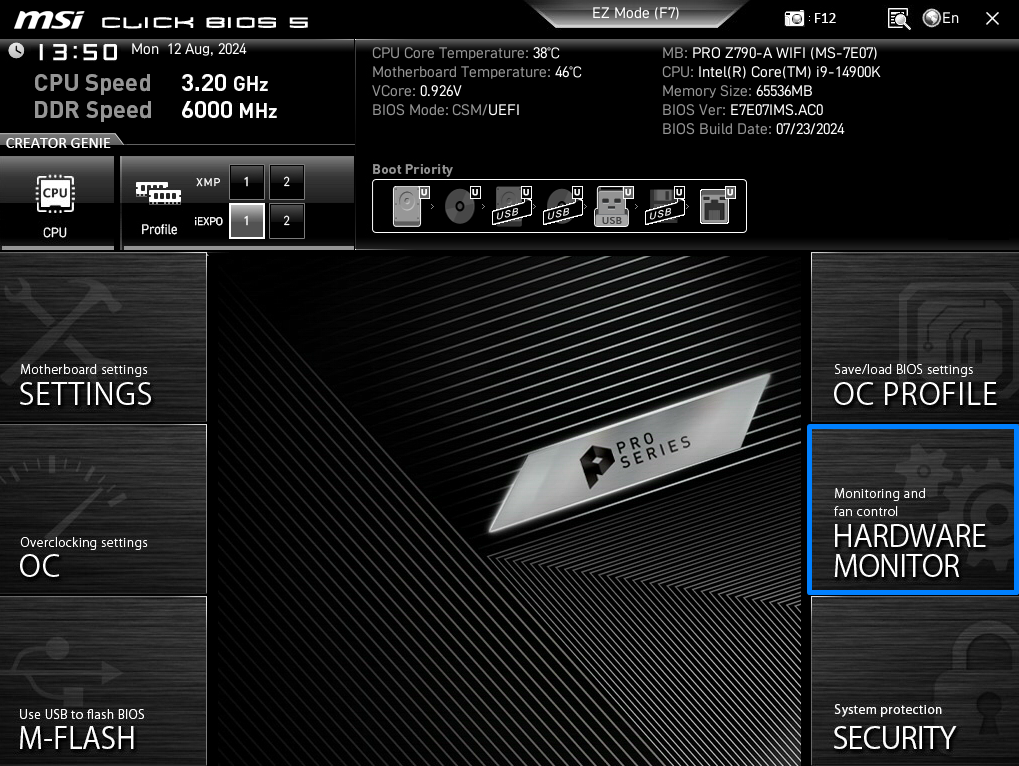

Select HARDWARE MONITOR on the right side of the screen.

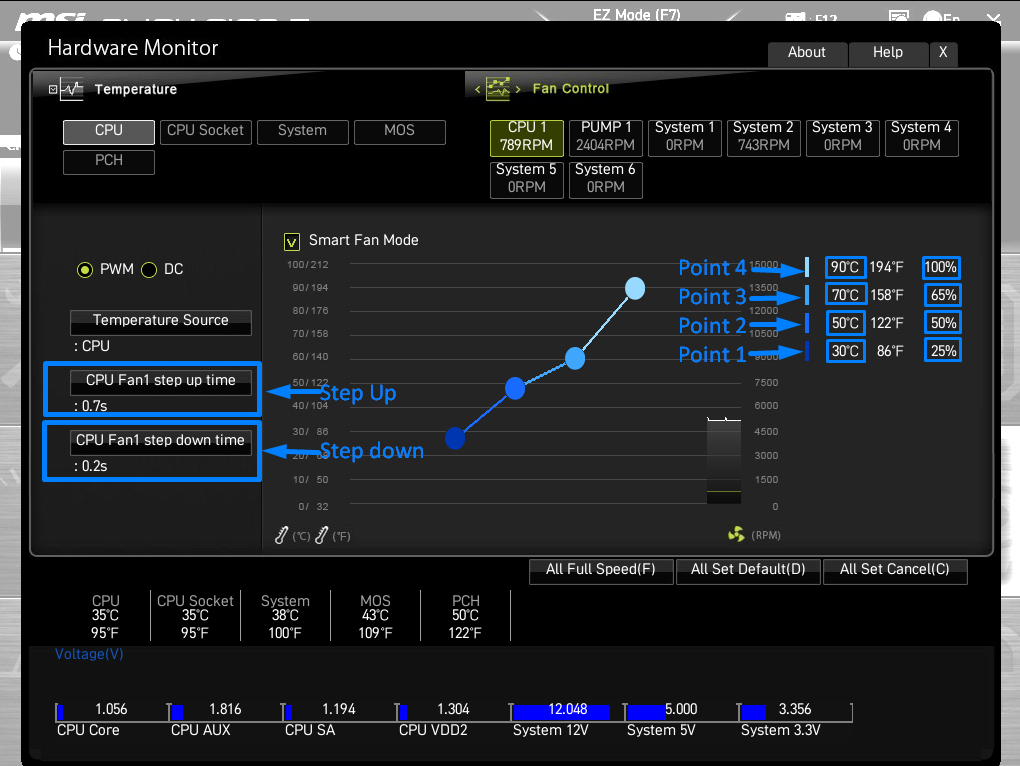

- To set the curve select the fan (CPU 1, Chassis 1, System 1, etc...), click on the temperature number/percentage.
Enter the values shown below. Please be sure to press Enter after inputting each value as it will not save otherwise.
Example of CPU 1 configuration
CPU 1 Fan Control: PWM Fan Step Up: 0.7 seconds Fan Step Down: 0.2 seconds Point 1 Temp: 30°C Point 1 %: 25% Point 2 Temp: 50°C Point 2 %: 50% Point 3 Temp: 70°C Point 3 %: 65% Point 4 Temp: 90°C Point 4 %: 100% Do not change any other settings
PUMP 1 Use these settings for AiO cooled Systems Pump Control: Auto/PWM Point 1 Temp: 30°C Point 1 %: 25% Point 2 Temp: 50°C Point 2 %: 50% Point 3 Temp: 70°C Point 3 %: 80% Point 4 Temp: 90°C Point 4 %: 100% Do not change any other settings Use these settings for APEX (open loop) Systems Point 1 Temp: 30°C Point 1 %: 65% Point 2 Temp: 50°C Point 2 %: 65% Point 3 Temp: 70°C Point 3 %: 80% Point 4 Temp: 90°C Point 4 %: 100% Do not change any other settings
All System Fans Fan Control: Auto/PWM Fan Step Up: 0.7 seconds Fan Step Down: 0.2 seconds Point 1 Temp: 30°C Point 1 %: 25% (Adjust this to 35% if your fans are Phanteks fans or not spinning periodically) Point 2 Temp: 50°C Point 2 %: 30% (Set to 40% if phanteks) Point 3 Temp: 70°C Point 3 %: 40% (Set to 50% if phanteks) Point 4 Temp: 80°C Point 4 %: 50% (Set to 60% if phanteks) Do not change any other settings
Once you have set your fan curves, make sure to press F10 to save your settings and exit out of the BIOS.
If you have questions or concerns, please contact one of our MAINGEAR Support agents: (908-620-9050) or support@maingear.com
